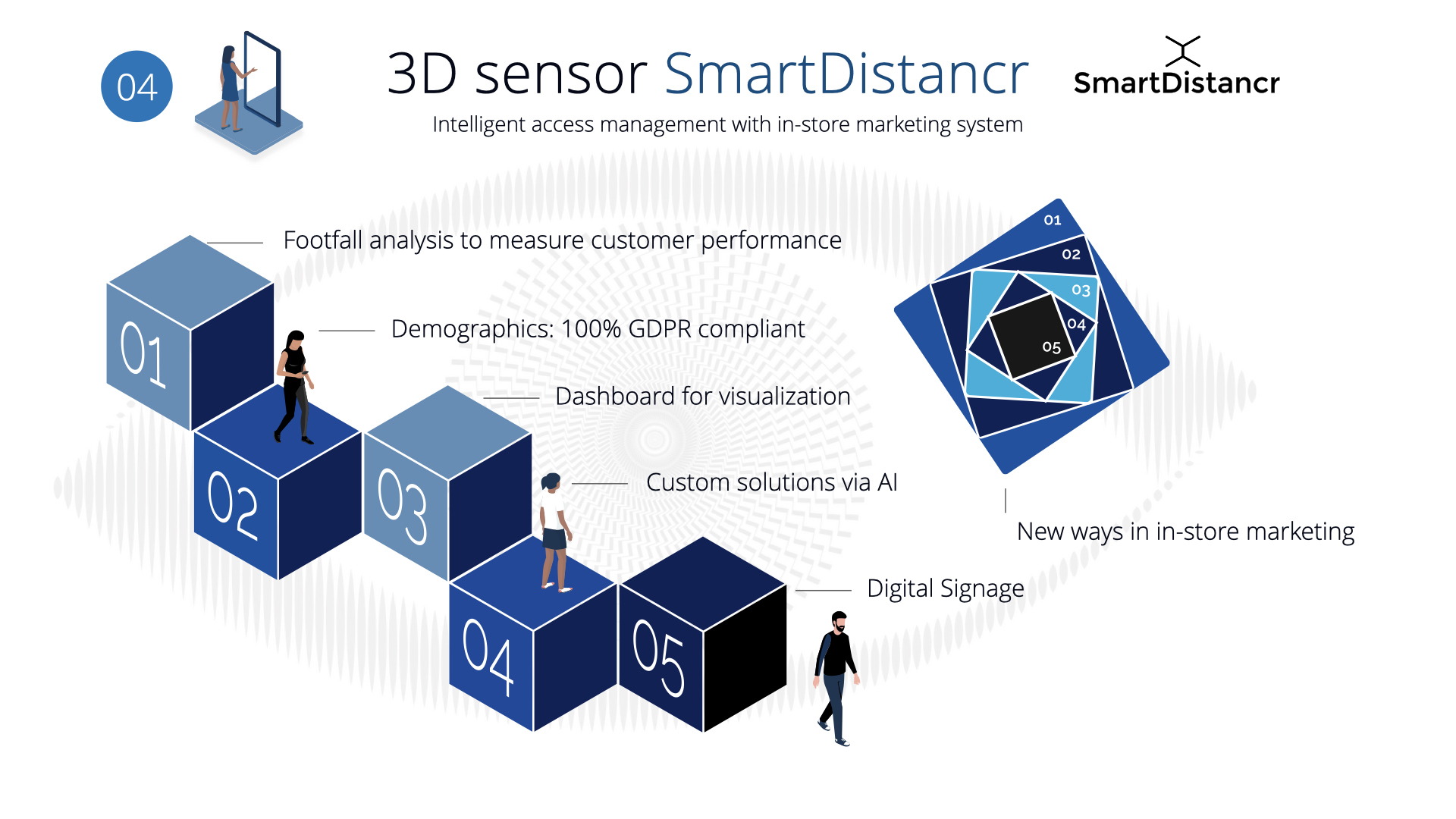

Digital signage with the SmartDistancr is the most important step to enter the world of in-store marketing via footfall analytics. Powered by infinimesh.
SMARTDISTANCR
With the SmartDistancr, a clear area of 40,000 sqm can be monitored. The A.I. (Artificial Intelligence) based area scanner processes the registered information on site in the device (Privacy by Design) and transmits privacy compliant anonymous count information into the dashboard.
Intelligent-Facility-
Management system from Germany
The first cloud native, scalable IoT platform from Germany
The SmartCountr as well as the SmartDistancr from Infinite Devices GmbH record the incoming and outgoing inspection with a sophisticated monitor system based on the latest 3D scanner technology. The targeted control of visitor flows and the reliable measurement of capacities require a hybrid solution here that relies on smart software and intelligent sensors.
The integration of complex room geometries, sophisticated role and user management, and the networking of a wide variety of platforms are among the strengths of the SmartCountr system. Flexible connectivity via WLAN/LAN and the robust housing make it easy to use in almost any application. Kubernetes scales automatically. The open source infinimesh platform is the first cloud-native, scalable IoT platform that guarantees 100% GDPR compliance for Wayang: The AI-based, modern hybrid system was developed by world-leading data scientists.
ENTRANCE CONTROL With the SmartDistancr, even complex entrance areas can be detected – regardless of whether they are particularly wide or many individual entrances. Complex spatial conditions with individual inputs and outputs are captured in an uncomplicated manner.
SECURE COUNTING Exact real-time counting of guests in sports arenas while maintaining GDPR compliance and visualization via traffic light system – all configurable via internet dashboard.
SmartCountr in practice: Person registration made easy
SmartCountr enables reliable entry and exit control in high-traffic buildings and outdoor areas. Security and data protection are top priorities. Precise measurement of the entrance situation and ensuring the permissible number of visitors is of fundamental importance, not only in times of the Corona pandemic.
Complete control without violating personal rights!
Because data privacy compliance is in our DNA, we use the Zero Trust concept to provide our customers with the highest security standards. A sensor field can use artificial intelligence (AI) to accurately distinguish who enters or leaves the area without violating the privacy rights of the person in question.
GDPR compliant.
Reliable.
Sure.
Facility management enables digital control and measurement of visitor flows and capacities in sports arenas, museums, libraries and event spaces of all types and sizes. SmartCountr guarantees security, privacy and precision indoors and outdoors – 100% GDPR compliant.
SMARTCOUNTR models
3D scanners for different requirements
Entry and exit control system for door widths up to 1.60 meters. A 3D infrared sensor detects a narrow passageway area (0.5 meters) from above (suspension approx. 2.5 meters high) and works independently of light at any time of day or night.
The 3D “Time of Flight” sensor in the waterproof housing (IP65) uses AI (artificial intelligence) and optimized ML (machine learning) algorithms to distinguish between people and objects from the 3D matrix image.
On an internal RaspberryPi 4 board with an encrypted Linux operating system, the sensor’s counting information is processed and transmitted to the open source IoT platform “infinimesh” via an encrypted token system (256key).
The data format is data sparse and realized via MQTT 5 and JSON as a container.
The SoloCountr is equipped with PowerLAN on the network side and offers HDMI connections for signage monitors as well as a WLAN repeater function for supplying signage tablets. Freely configurable, the SoloCountr also works with GSM/NB IoT, LoraWAN,
LAN/WLAN networks. In the event of network failures, the sensor continues to count independently and transmits the count data as soon as the network connection is available again.
The SoloCountr is supplied with a 220 volt power input. A discrete, ring power supply must be ensured for the connection to the PowerLAN.
The SoloCountr has been designed according to the principles of “Security/Privacy by design” and thus follows the recommendations of the “Digital Agenda of the State of Saxony-Anhalt”.
Technical data
– Housing: Powder coated metal sheet
– Power consumption: 220 volts, 18 watts (10 watts power saving)
– Weight: 3.6 – 4 kilograms (special variants depending on network technology)
– Suspension: 2 – 2.70 meters height
– Sensor field: 0.5 x 1.6 meters maximum
– Dimensions: 70mm x 90mm x 800mm
– Operating temperature: (-20 to 55 degrees Celsius), Water resistant (IP65)
– Suspension: Global Truss System
Entry and exit control system for door widths up to 3.20 meters. Two 3D infrared sensors detect a narrow passageway area (0.5 meters) from above (suspension approx. 2.5 meters high) and work independently of light at any time of day or night.
The 3D “Time of Flight” sensor in the waterproof housing (IP65) uses AI (artificial intelligence) and optimized ML (machine learning) algorithms to distinguish between people and objects from the 3D matrix image.
On an internal RaspberryPi 4 board with an encrypted Linux operating system, the sensor’s counting information is processed and transmitted to the open source IoT platform infinimesh via an encrypted token system (256key).
The data format is data sparse and realized via MQTT 5 and JSON as a container.
The TwinCountr is equipped with PowerLAN on the network side and offers HDMI connections for signage monitors as well as a WLAN repeater function for supplying signage tablets. Freely configurable, the TwinCountr also works with GSM/NB IoT, LoraWAN,
LAN/WLAN networks. In the event of network failures, the sensor continues to count independently and transmits the count data as soon as the network connection is available again.
The TwinCountr is supplied with a 220 volt power input. A discrete, ring power supply must be ensured for the connection to the PowerLAN.
The TwinCountr has been designed according to the principles of “Security/Privacy by design” and thus follows the recommendations of the “Digital Agenda of the State of Saxony-Anhalt”.
Technical data
– Housing: Powder coated metal sheet
– Power consumption: 220 volts, 27 watts(16 watts power saving)
– Weight: 4 – 4.4 kilograms (special variants depending on network technology)
– Suspension: 2 – 2.70 meters height
– Sensor field: 0.5 x 3.2 meters maximum
– Dimensions: 70mm x 90mm x 1100mm
– Operating temperature: (-20 to 55 degrees Celsius), Water resistant (IP65)
– Suspension: Global Truss System
With the new SmartDistancr, it is now even possible to monitor an area of up to 40,000 sqm. The camera-based area scanner uses artificial intelligence (AI) via an encrypted token system.
The Smart Distancr is powered by an Arm processor on Raspi Board and a Tensor Flow Shield, is encrypted and does not send image information to the cloud. In offline mode, “constraints” and “spatial geometries” can be defined and organized into “devices”.
The camera has a range of 30 meters. The ML algorithms used also analyze the emotional states (happy/neutral/disappointed) in the immediate sensor field (2-4 meters). The SmartDistancr signals minimum distances to be maintained. The free integration of further ML algorithms can be realized by our experienced datascientists after consultation.
The SmartDistancr is equipped with WLAN on the network side. Freely configurable, the SmartDistancr also works with GSM networks and is powered by a 12-volt power supply. Because of the light weight, an adhesive connection is sufficient.
The SmartDistancr has been designed according to the principles of “security/privacy by design” and thus follows the recommendations of the “Digital Agenda of the State of Saxony-Anhalt”.
Technical data
– Housing: Powder coated metal sheet
– Power consumption: 12 volt power supply
– Weight: 400 gram
– Suspension: 2 – 2.50 meters height
– Scan distance: 30 meters
– Dimensions: 50mm x 80mm x 60mm
– Image resolution: 16 megapixels (interpolated)
– Exposure: Auto
– Viewing angle: 58 degrees
– Lens: f = 6.0 F =2.0
The “Global-Trust” mounting system is stable and quick to set up. Mounting takes place above the access to be monitored
As soon as power is supplied to the Solo or TwinCountr, the sensor sends motion data. Functional expansion with additional SmartCountr is possible at any time
with multiple inputs and outputs are freely configurable. Complex role management and scheduler even allow planning of events and access limits
with freely configurable threshold values for the colors (red, yellow, green)
with up-to-the-second documentation of inputs and outputs for each monitored room.
for all parameters. Manual traffic light control (remote) for controlling entrances, exits and flows of people
for the representation of the room geometry and audience flows.
optionally via monitors, tablets and smartphones (web interface). Various visualizations possible by means of colored LED systems
SMARTCOUNTR:Countless features
Accurately record visitor flows
SMARTCOUNTR IN THE SMART CITY
SmartCountr in practice: Because of the versatile plug-and-play combinations with other sensors that can be used, the system is the basis for modern smart city solutions.
SPARKASSEN EISDOM: LAUNCH WITH SMARTCOUNTR
Powerplay at the Sparkassen-Eisdom in Halle: With the digital solution from Infinite Devices, the Sparkassen-Eisdom is once again open for public skating according to the 3-G rule.
FREEDOM FOR STADIUMS AND POOLS
How can you safely measure visitor flows in pandemic times? We have developed the innovative “SmartCountr” access control system for this purpose, which is already being used successfully by many customers in Germany.
MAKING IOT AUDIBLE
“To date, little attention has been paid by the research community to the applications of internetofthings (IoT) in the field of interactive sonification to the shared control of the sound system by both the user performing gestures local to the system itself and by one or more remote users.”
SMARTCOUNTR AND INFINIMESH
The future of the smart city
With the open-source AIoT platform infinimesh and the smart-facility management system SmartCountr
Visual warning signal: control over the number of visitors
GDPR compliance: your privacy is guaranteed!
Intelligent 3D scanner: Highly sensitive and safe
ELIGIBLE FOR UP TO 85% FEDERAL SUBSIDY AND COUNTRIES
Shaping the digital transformation: “Digital Now!
The German Federal Ministry for Economic Affairs and Energy (BMWi) creates the economic policy framework and supports companies: SmartCountr installation can be subsidized by up to 85 percent from the federal and state governments. The new “Digital Now” funding program started on September 7, 2020 and supports companies with 3 to 499 employees with investments in two modules: Module 1: Investments in digital technologies, especially hardware and software. The program offers financial grants and is designed to encourage companies to invest more in digital technologies as well as in the qualification of their employees.
Who?
This module supports investments in software and hardware, especially for the internal and external networking of the company.
Support is provided for investments in digital technologies and related processes and changes in the company. These investments must be specifically identified by the applicant. This includes in particular hardware and software that promote the internal and external networking of companies, for example under the following aspects: Data-driven business models, artificial intelligence (AI), cloud applications, Big Data, sensor technology, 3D printing, and IT security and data protection.
This module helps companies to train employees in the use of digital technologies.
Funding is provided for investments that improve the qualifications of the company’s employees – particularly in the development and implementation of a digital strategy in the company, as well as in IT security and data protection, but also quite fundamentally on digital working and the necessary basic skills. For more information on the requirements for the qualification measure, see “What quality requirements must a training provider meet for Digital Now in Module 2 and how do I prove them?”.
Important: Companies can apply for funding in one or both modules.
How?
The funding is provided as a grant that does not have to be repaid. Companies have a maximum of 12 months to implement their funded digitization project. The grant is paid out after a successful audit of the proof of use. The maximum funding amount is 50,000 euros per company; in the case of value chain and/or network investments, it can be up to 100,000 euros per company. In module 1 as well as in case of cumulative use of modules 1 and 2, the minimum subsidy amount is 17,000 euros, in module 2 it is 3,000 euros. The subsidy is calculated proportionally to the investment costs of the company. The subsidy rate (in % of the investment costs) is graduated according to the size of the company.Thus, smaller companies receive a slightly higher percentage subsidy. The program runs until December 31, 2023.
Where.
SmartCountr
Use cases
Intelligent Smart Facility Management System
CONFERENCE ROOMS
Within conference hotels, public authorities or office buildings, it is important to be able to measure the utilization of rooms permanently and precisely: Sensors in the waiting areas allow capacities to be viewed at any time and ensure that minimum distances are reliably maintained. The visualization of entire building areas also guarantees simplified evacuation in emergencies.
MEASUREMENTS
SmartCountr provides the basis for reliable enforcement of hygiene concepts and effective management of large crowds at trade shows. A traffic light or LED system is used to monitor the minimum distance between visitors and ensure that the maximum number of participants is not exceeded. The multifunctional dashboard helps to capture names and all required contact data in a fully GDPR compliant way.
SPORT
Stadiums, gyms and other sports facilities are subject to strict capacity limitations. The SmartCountr reliably records the number of visitors flowing in and out. The easy-to-understand traffic light system indicates whether the limit value is exceeded and offers the option of entering contact data in accordance with hygiene regulations. SmartCountr’s multifunctional dashboard displays all motion sequences and visualizes capacities.
UNIVERSITIES AND COLLEGES
The SmartCountr’s 3D sensor provides smart-facility management for universities and colleges. The goal: 100 percent monitoring of entry and exit situations in lecture halls and seminar rooms. The dashboard helps with the display. A traffic light or LED system is used to monitor the minimum distance and ensure that the maximum number of participants of employees and students is observed.
MARKETS
To ensure the monitoring of hygiene regulations in fenced areas with many access points, flexible and easy-to-adapt solutions are needed. The SmartCountr can be easily attached to truss systems and, thanks to its GSM functionality, offers a fail-safe counting process of incoming and outgoing visitors even in a WLAN-free area. Access control is provided by an intuitive traffic light system.
THEATER
The SmartCountr’s 3D sensor enables 100% monitoring of entrance and exit situations in theaters, concert halls and cinemas – even in large and confusing building complexes. The dashboard helps to clearly display the capacity of all sub-areas while capturing all data in a fully GDPR compliant manner.
CLUB
In addition to recording the number of visitors to clubs and concert venues as an important element in complying with clearance rules, the SmartCountr offers the option of leaving names and addresses in compliance with hygiene regulations in a privacy-compliant manner. The counting process is simplified in the dashboard by a calendar system, which, in addition to a time series with all peak audience capacity values, also enables optimized event planning.
RETAIL
SmartCountr offers simple, reliable and 100% DSGVO-compliant people tracking in real time. This means absolute control over the number of customers in the buildings. Shopping centers and supermarkets can thus ensure that limits are not exceeded. Access control is provided by an intuitive traffic light system. The dashboard helps to clearly display the capacity of all sub-areas.
RECREATION WHEELS
The system with double sensor and smart gateway including GSM module is installed in the checkout and main portal area. The data is obtained in real time and allows accurate measurement of visitor flows as well as reliable measurement of capacities in the outdoor pool, checkroom and toilet areas, and swimming pools. The highlight is the “AquaDistancr”. All activities, minimum distances as well as the defined capacity limit of the basins are permanently measured.
SPAS & INDOOR POOLS
In spas and indoor pools, accurate recording of capacity limits is extremely important. The SmartCountr reliably records the number of visitors flowing in and out. A dashboard shows room details, measures capacity and attendance at entrances and exits, shows critical spaces, and can open or close entrances. SmartCountr’s multifunctional dashboard displays all motion sequences and visualizes capacities. The “AquaDistancr” can also be used to measure the minimum distances as well as the defined capacity limit of the pools.
LEISURE PARK
Monitoring for compliance with hygiene regulations is easy in amusement parks with SmartCountr. Employees and customers can see how many visitors are on the premises, are informed about waiting times and violations of minimum distances, and have secure control over the flow of visitors. The SmartCountr can be easily attached to truss systems and, thanks to its GSM functionality, offers a fail-safe counting process of incoming and outgoing visitors even in a WLAN-free area.
MUSEUM
The SmartCountr’s 3D sensor enables precise measurement and recording of visitor numbers as well as entry and exit situations in museums – even in large and confusing building complexes. The timeseries function provides a tamper-proof evidence of the number of persons to the second.The dashboard helps to clearly display the capacity of all subareas while all data is collected in a fully GDPR-compliant manner.
